GEM TECH 5.1 remote kit, Basic module with 16×2 display for 5.1 Home theatre system digitally controlled by remote

 Gem Tech 5.1 Home Theater Remote kit prepared to support for Audio Amplifier setting Technicians.

Specification
♦   Product code : GT-R001
♦   Power supply : 0 12vdc single supply/2 amp max
♦   Display Size : 16×2
♦   Remote Kit Basic Module

Can attach below said boards with this Remote Kit
Gem Tech’s boards
♦   6 Channel Speaker Protection Board
♦   Digital Switching Board
Market boards
♦   mp3 Boards
♦   HD Audio Rush
♦   Ayino HDMI Board
♦   FT003-V2

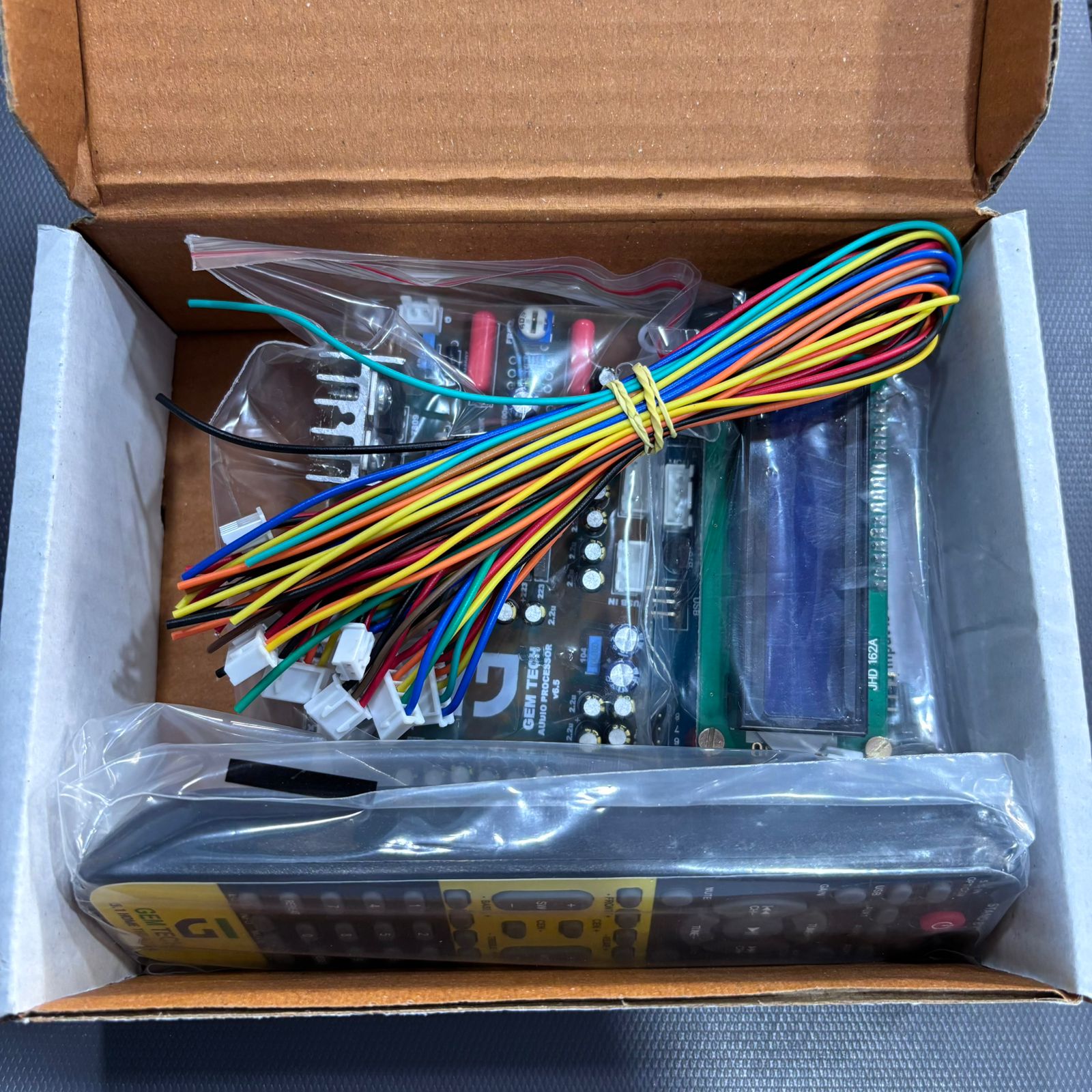

Package Includes

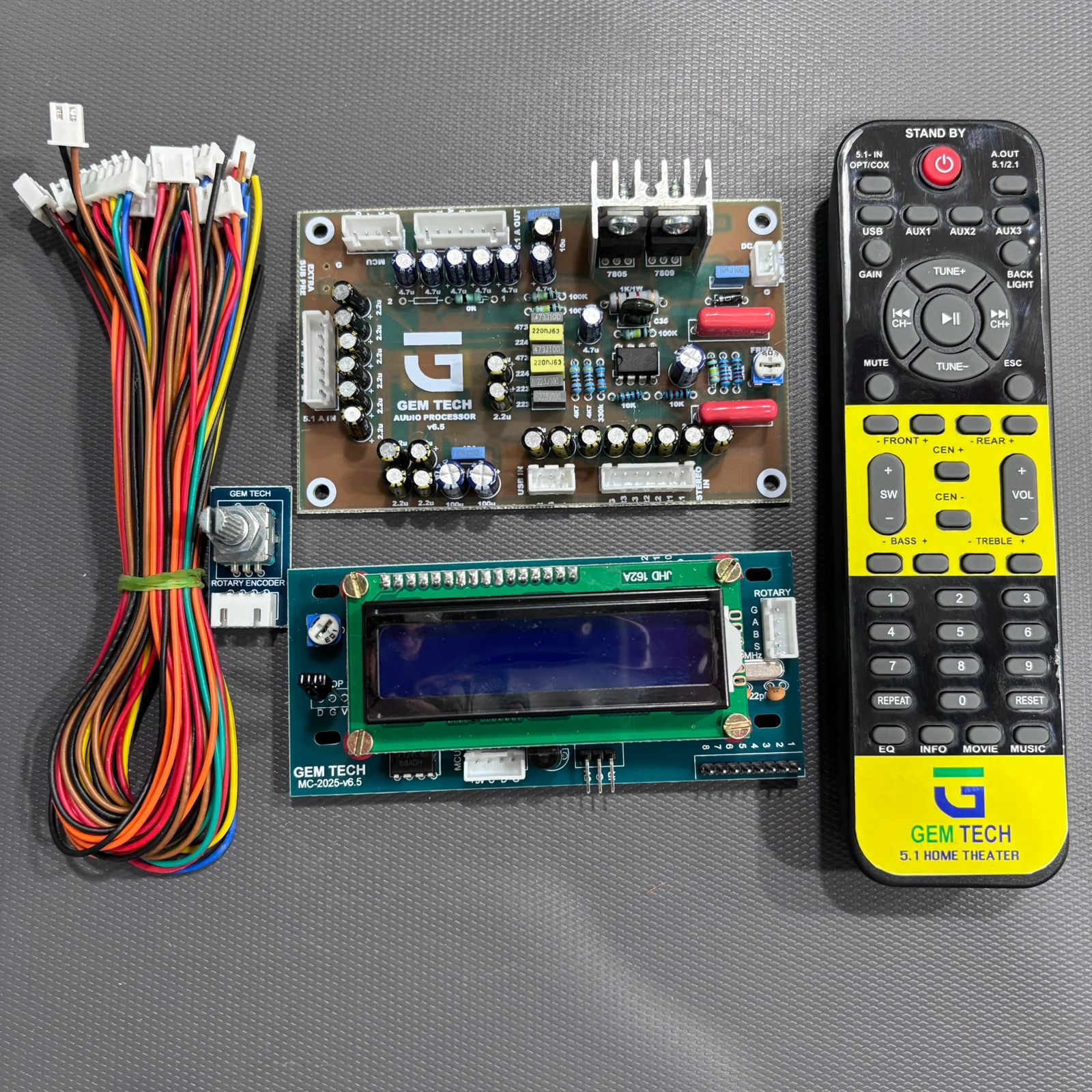

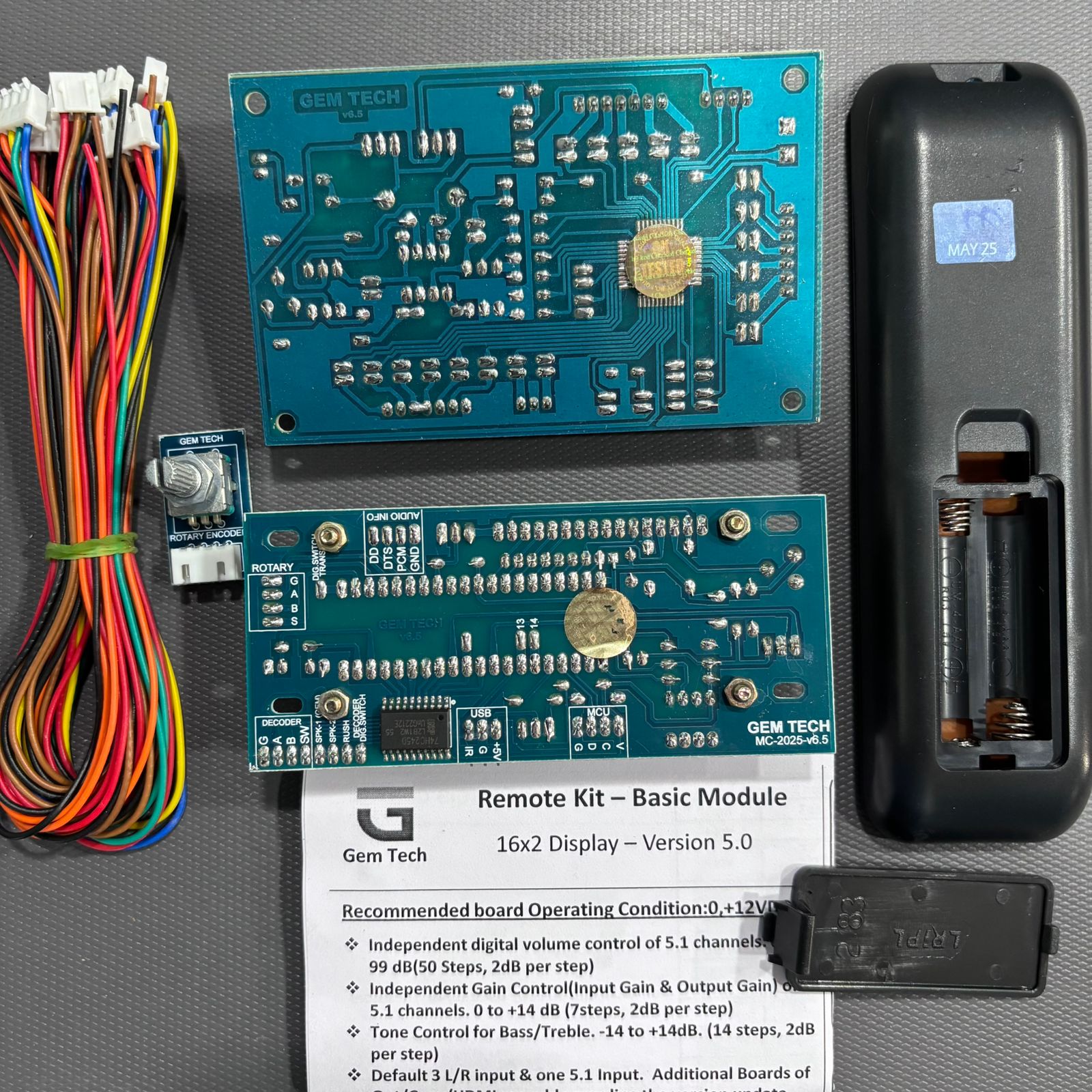

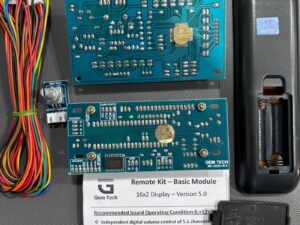

1 x Top Kit (LCD kit)
1 x Bottom Kit (Audio Processor Board)
1 x Rotary Encoder with PCB
1 x Wire Set
1 x Remote

Features :-
♦   Indipendent digital volume control of 5.1 channels: 0 to -99 dB(50 Steps, 2dB per step)
♦   Independent Gain Control(Input Gain & Output Gain) of 5.1 channels. 0 to +14 dB (7steps, 2dB per step)
♦   Tone Control for Bass/Treble. -14 to +14dB. (14 steps, 2dB per step)
♦   Default 3 L/R input & one 5.1 Input.  Additional Boards of Opt/Coax/HDMI can add according the version update.
♦   Default 5.1 Audio out for the above all inputs.  Remote Option given for 2.1 Audio out.
♦   One time 5.1 Input setings in “Admin Settings” for Market Boards like HD Audio Rush, Etc.
♦   Last Memory of Volume, Gain recalls & Welcome Name automatically.
♦   Mute/Pause/LCD Back Light off, will be released automatically once you click Volume button.
♦   Stand-by/Pause will be released by First Click(Press) of Rotary Encoder.
♦   “Test Tone” provided on long press of “Gain” button.  Before do it, play any one song by USB/BT/FM.
♦   According to the input Remote button few will work, few will not work.
♦   Normal Re-set & Factory Re-set provided.
♦   Short Circuit information on LCD with Speaker Icon

Admin Settings :-
1)   Software version ⇒ Press GAIN, EQ
2)   Factory Reset ⇒ Press GAIN, EQ, 0. After setting Press ESC to confirm.
3)   Gain Settings ⇒ Press GAIN, EQ, 7. After setting Press ESC to confirm.
4)   Welcome Name Settings ⇒ Press GAIN, EQ, 6. After setting Press ESC to confirm.
5)   HD Board Settings(Opt/Coax/HDMI) ⇒ Press GAIN, EQ, 5. After setting Press ESC to confirm.
6)   LCD Back Light Auto On/Off Settings ⇒ Press GAIN, EQ, 9. After setting Press ESC to confirm.
7)   Standby Enable/Disable Settings ⇒ Press GAIN, EQ, 8. After setting Press ESC to confirm.

♦   A 5.1 home theater system refers to a audio setup that includes five speakers and one subwoofer.
The “5.1” designation breaks down as follows:
5: This number indicates the standard five speakers in the setup.
1: This number indicates the subwoofer.

Here’s a details of the 5.1 Home Theater :
Front Left and Front Right Speakers (2): These speakers are typically placed on either side of the television or screen. They handle the main audio, providing stereo sound.
Center Speaker (1): Placed above or below the screen, the center speaker is responsible for dialogue and other central audio elements. It enhances clarity and ensures that voices come from the center of the
screen.
Rear Left and Rear Right Speakers (2): These speakers are positioned behind the viewing area, often on the rear walls or mounted to the ceiling. They contribute to surround sound effects, immersing the viewer in a
more spatial audio experience.
Subwoofer (1): The subwoofer handles low-frequency sounds, such as deep bass. It adds richness and depth to the overall audio experience, especially during action scenes or music with heavy bass.
When properly set up, a 5.1 home theater system can provide a more immersive audio experience for movies, music, and other multimedia content.
